Airtac CS1-U CS1-UX Air Pneumatic Cylinder Magnetic Reed Switch Sensor Pneumatic Parts LED Indicator
Order Code
Specification
| Item/Type | CS1-U | CS1-UX |
| Switch logic | STSP Normally opened type |
| Switch type | Reed switch with contact |
| Operating voltage(V) | 5~240V AC/DC |
| Max. Switching current(mA) | 100 |
| Switching rating(W) | Max. 10 |
| Current consumption | NO |
| Voltage drop | 2.5V Max. @100mA DC |
| Cable | Φ4.0,2C Gray oil resistant PVC (Flame retarded) |
| Indicator | Red LED | No |
| Leakage currend | No |
| Sensitivity(Gauss) | 65~75 |
| Max. Frequency(Hz) | 200 |
| Shock(m/s²) | 300 |
| Vibration(m/s²) | 90 |
| Temmperature range(℃) | -10-70 |
| Enclosure calssification | IP67(NEMA6) |
| Protection circuit | NO |

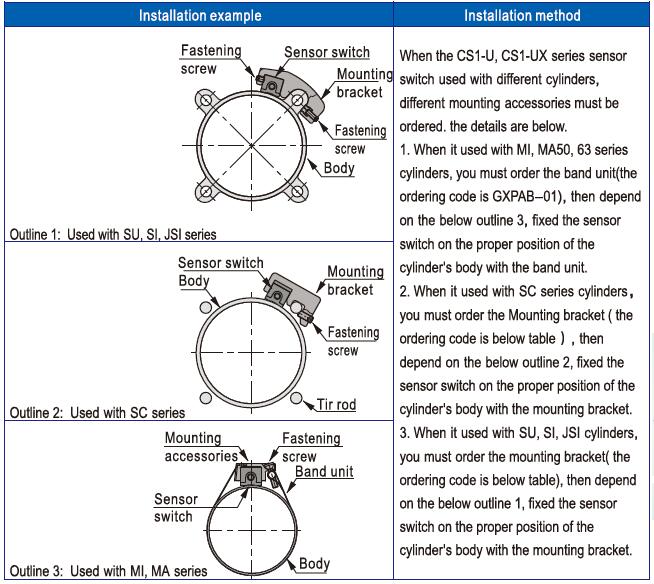

Mounting:
Airtac Sensor Product List
| Model | Suitable for |
| CS1-U | SI, SU, SC, JSI, MI, MA50(63) |
| CS1-F | SI, SU, SC, JSI, MI, MA50(63) |
| CS1-T | TWG |
| CS1-M | PB, MA, MAL, MI, MF, MG |
| CS1-E | SE, ACE |
| CS1-G | MD, MK, TR, TC, ACP, ACQ, STW |
| TWH, TWM, TWQ, SDA20~100 |
| QCK, HFZ10~40, HFY10~32 |
| HFP10~32 |
| CS1-J | SDA, TN, TWH, TWM, ACQ32~100 |
| TWQ32~50, QCK32~63 |
| CS1-B1 | SU32~50, SI32(40), jsi32(40), SGC125, SC125 |
| CS1-B2 | SU63, SI50(63), JSI50(63) |
| CS1-B3 | SU80, SI80, JSI80 |
| CS1-B4 | SU100, SI100, JSI100 |
| CS1-B5 | SU125, JSI125, SGC250, SGC250 |
| CS1-B6 | SI160 |
| CS1-B7 | SI200 |
| CS1-B8 | SGC160(200), SC160(200) |
| CS1-A | SC All cylinder |
Dimension
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
Competitive Advantage
| Our product features | Our Services Guarantee: |
| 1) Competitive price | 1) Prompt respond (Reply with 24 hours) |
| 2) Good quality | 2) Free Samples (Customer pay for the delivery cost) |
| 3) Professional Packaging | 3) Registration support. |
| 4) Produce according to Customers’ instruction | 4) Photos/videos are available during production. |
| 5) None delay shipment | 5) Loading inspection, and send loading photos before shipment. |
After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
