TN double shaft Pneumatic cylinder, Φ10mm,Φ16mm,Φ20mm,Φ25mm,Φ32mm

Place of Origin : Ningbo

Brand Name : Airtac or OEM

Model Number : TN double shaft Pneumatic cylinder, Φ10mm,Φ16mm,Φ20mm,Φ25mm,Φ32mm

Certification : CE, ISO9001

MOQ : 1 piece

Price : USD8-15

Packaging Details : carton,pallet or according to customers' requirement

Delivery Time : 5 working days after receiving the customers' payment

Payment Terms : T/T,Western Union,L/C

Supply Ability : 15000 pcs per month

Contact Now

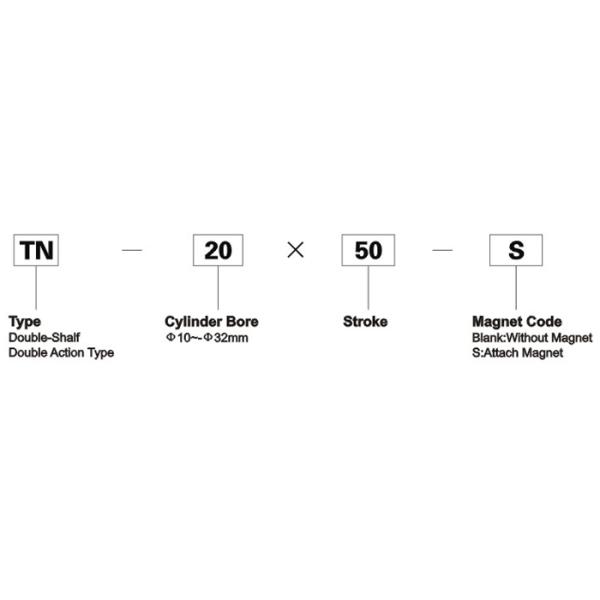

TN double shaft Pneumatic cylinder, Φ10mm, Φ16mm, Φ20mm, Φ25mm, Φ32mm

TN double shaft Pneumatic cylinder, Φ10mm,Φ16mm,Φ20mm,Φ25mm,Φ32mm

Bore(mm) 10 16 20 25 32
Motion Pattern Double action
Working Medium Air
Operating Voltage Range 1~9kgf/cm2
Ensured Pressure Resistance 10.5kgf/cm2
Operating Temperature Range -5~+70℃
Operating Speed Range 100~500mm/s
Adjustable Stroke -10~0mm
Cushion Type Adjustable Cushion
Non-rotating Precision 0.4℃ 0.3℃
Port Size M5×0.8 G1/8"

TN double shaft Pneumatic cylinder, Φ10mm,Φ16mm,Φ20mm,Φ25mm,Φ32mmTN double shaft Pneumatic cylinder, Φ10mm,Φ16mm,Φ20mm,Φ25mm,Φ32mmTN double shaft Pneumatic cylinder, Φ10mm,Φ16mm,Φ20mm,Φ25mm,Φ32mm

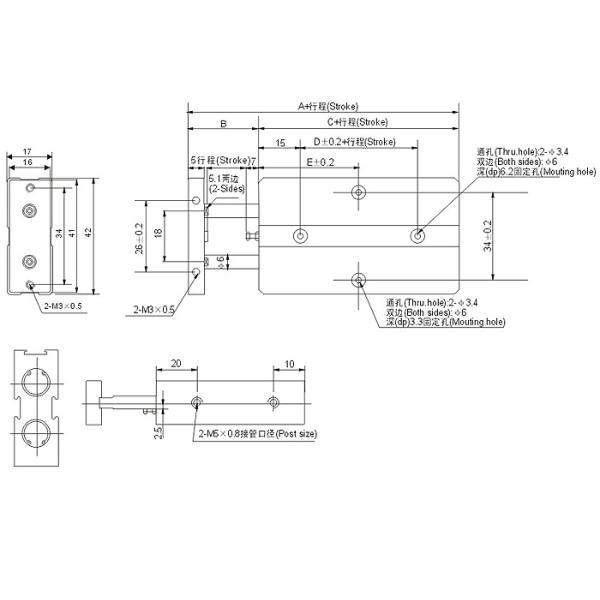

Dimensions sheet-10TN
Bore size A B C D E
Item 10 20 30 40 50 60 70
10 63 12 51 10 30 30 35 40 45 50 55
Dimensions sheet-16-25TN
Bore size A B C D E F G H I
Item 10 20 30 40 50 60 70 80 90 100 125 150
16 68 15 53 20 30 35 40 45 50 55 60 65 70 75 88 100 8 47 6 24
20 78 20 58 20 35 35 40 45 50 55 60 65 70 75 88 100 10 55 9 28
25 81 19 62 30 40 40 45 50 55 60 65 70 75 80 93 105 10 66 8 34
Bore size/Item J K L M N1 N2 P1 P2 Q R S T V W
16 M4×0.7dp 5 47 53 20 22 11 (Both sides):φ7.5(dp) 7.2mm (Both sides):φ8(dp) 4.4mm 34 3 54 21 8 6.1
(Thru.hole): φ4.5 (Thru.hole): φ4.5
20 M4×0.7/dp 5 55 61 24 25 12 (Both sides):φ7.5(dp) 7.2mm (Both sides):φ8(dp) 4.4mm 44 3.5 62 25 10 8.1
(Thru.hole): φ4.5 (Thru.hole): φ4.5
25 M4×0.7/dp 6 66 72 29 27 12 (Both sides):φ7.5(dp) 7.2mm (Both sides):φ8(dp) 4.4mm 56 7 73 30 12 10
(Thru.hole): φ4.5 (Thru.hole): φ4.5
Dimensions sheet-32TN
Bore size A B C D E
Item 10 20 30 40 50 60 70 80 90 100 125 150
32 108 30 78 35 45 50 55 60 65 70 75 80 85 90 103 115
